Gasket

Hengda supplies EPDM/FPM Gaskets .Complete sizes from 1/2" to 12". High quality with best wholesale prices. For more details about our Gaskets, please contact us!

Send Inquiry

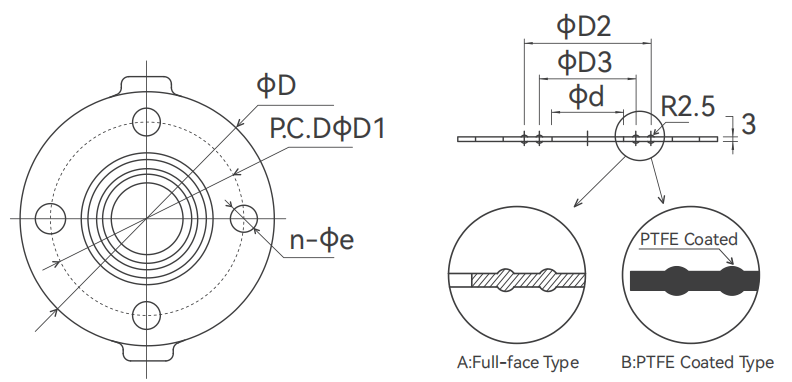

Product Description

Gasket Size	Standard	Material
1/2”~12”	ANSI、JIS、DIN	EPDM、FPM、EPDM+PTFE

JIS 10K

Size	20mm	25mm	32mm	40mm	50mm	63mm	75mm	90mm	110mm	125mm	150mm	200mm	250mm	300mm
Nom.	1/2"	3/4"	1"	1-1/4"	1-1/2”	2"	2-1/2"	3”	4"	5”	6"	8”	10"	12"
D	93	98	123	133	138	153	173	183	208	248	278	328	398	443
D1	70	75	90	100	105	120	140	150	175	210	240	290	356	400
D2	41	47	53	65	69	83	101	112	138	166	190	247	306	352
D3	26	32	38	50	54	68	86	98	120	145	168	216	270	324
d	18	22	30	37	43	54	69	80	102	127	150	198	249	300
n-φe	4-15	4-15	4-19	4-19	4-19	4-19	4-19	8-19	8-19	8-23	8-23	12-23	12-25	16-25
T	3	3	3	3	3	3	3	3	3	3	3	3	3	3

ANSI 150PSI

Size	20mm	25mm	32mm	40mm	50mm	63mm	75mm	90mm	110mm	125mm	150mm	200mm	250mm	300mm
Nom.	1/2"	3/4”	1"	1-1/4”	1-1/2”	2"	2-1/2”	3”	4”	5"	6"	8”	10"	12"
D	86	98	107	124	124	149	175	187	226	251	276	340	403	480
D1	60	75	79	98	98	420	139	152	190	215	241	298	361	431
D2	40	47	53	68	68	83	101	111	137	165	190	246	307	356
D3	25	32	38	50	53	68	86	99	119	144	167	215	269	325
d	17	22	30	43	43	53	86	81	101	127	148	198	248	299
n-Φe	4-16	4-15	4-16	4-16	4-16	4-19	4-19	4-19	8-19	8-22	8-22	8-22	12-25	12-25
T	3	3	3	3	3	3	3	3	3	3	3	3	3	3

DIN PN10

Size	20mm	25mm	32mm	40mm	50mm	63mm	75mm	90mm	110mm	125mm	150mm	200mm	250mm	300mm
Nom.	1/2”	3/4”	1"	1-1/4"	1-1/2”	2”	2-1/2"	3”	4"	5”	6"	8”	10"	12"
D	93	103	113	133	148	163	183	198	218	248	283	328	393	443
D1	65	75	85	100	110	125	145	160	180	210	240	295	350	400
D2	41	47	53	65	69	83	101	112	138	166	190	247	306	352
D3	26	32	38	50	54	68	86	98	120	145	168	216	270	324
d	18	22	30	37	43	54	69	80	102	127	150	198	249	300
n-φe	4-14	4-14	4-14	4-18	4-18	4-18	4-18	8-18	8-18	8-18	8-23	12-23	12-23	12-23
T	3	3	3	3	3	3	3	3	3	3	3	3	3	3
